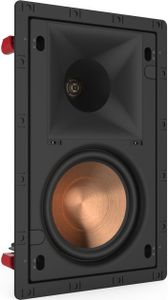

Klipsch® Reference Premiere Professional Series PRO-160RPW 6.5" In-Wall Speaker


Model #:

1063963

Model #: 1063963
720156
Klipsch
$549.00

At a Glance

Product Dimensions 14.1"h x 9"w x 3.9"d

With a 6.5” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® horn, the PRO-160RPW brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theater system.Read More

$549.00

Get to know this product.

Product Overview

Product Overview

6.5" Cerametallic Woofer

1" Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn

Exclusive, modular SecureFit™ Installation System

Paintable, magnetic grille included

True Reference Premiere Acoustics

Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Reference Premiere series. With a 6.5” Cerametallic woofer and a 1” Titanium Dome tweeter mated to a composite coated Hybrid Cross Section Tractrix® horn, the Pro-160RPW brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theater system.

SecureFit™ Installation System

The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing, which can lead to breaking the dog leg or cracking the drywall. The speaker module is then screwed to the bezel (using machine screws instead of traditional drywall screws) for a more robust, acoustically stable installation than the competition.

All New, Bezel-Free Magnetic Grille

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

PVC Paint Shield Included

Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)7.2
Color Finish NameBlack
RMS Power Handling (Watts)200
Height (cm.)35.8
Depth (cm.)9.91
Width (cm)22.9
Product Weight (kg)3.26
ColorBlack
Impedance8 ohms
Number of Speakers1
Depth (in.)3.9
Height (in.)14.1
Width (in.)9

General

Frequency Range56Hz - 23kHz +/- 3dB
High Frequency Driver1" (2.54cm) Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn
Low Frequency Driver6.5" (16.51cm) Cerametallic Woofer
Sensitivity94 dB @ 2.83V / 1m
Coverage Angle90° x 90°
Power Handling50W RMS / 200W Peak
Impedance8 Ohm Compatible
Enclosure Material/TypeABS/Infinite Baffle
FinishBlack Baffle/Frame, White Paintable Grille
Product Dimensions9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D)
Mounting Depth3.78” (9.6cm)
Included in BoxGrille, Paint Shield
Installation KitIK-650-W (Sold Separately)
Fire Rated EnclosureME-650-W (Sold Separately)
Built From2017
