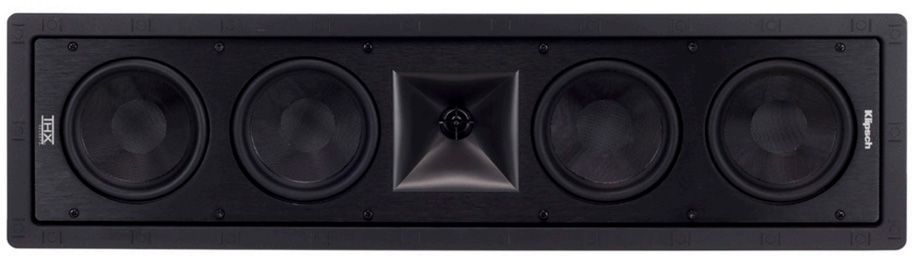

Klipsch® Professional Series THX-504-L In-Wall Speaker


Model #:

1062259

Model #: 1062259
720047
Klipsch
$999.00

At a Glance

Engineered to bring real cinema sound to the comforts of home without taking up valuable floor space, the Klipsch THX® Ultra2 In-Wall speakers offer the ultimate performance in a hidden solution loudspeaker.Read More

$999.00

Get to know this product.

Product Overview

Product Overview

1" Titanium Diaphragm Compression Driver mated to a 90° x 90° square Tractrix® Horn

Four 5.25" Fiberglass Cone Woofers

THX® Select 2 Certified

Cinema Quality Sound

Maximum Installation Reliability

Unlimited Flexibility

Edge-to-Edge Grilles

THX® ULTRA2 Certified

Delivers effortless dynamic range and brings superior sound to larger areas thanks to its highly regarded THX Ultra2 certification. It not only delivers consistent compelling audio to larger-sized rooms it also brings real cinema sound to the comforts of home without taking up any floor space.

Cinema Quality Sound

Employs high output fiberglass woofers for powerful bass impact, while a 1-inch titanium tweeter mated to a new symmetrical pattern 90 x 90 square Tractrix® Horn generates flat in-room frequency response with high efficiency and low distortion.

Maximum Installation Reliability

This in-wall speaker also consistently delivers thrilling, realistic sound, whether it's installed horizontally or vertically. It features sure-grip mounting dogs that provide even pressure against drywall for long- term installation reliability, and includes a paintable grille that blends in perfectly with any décor.

Unlimited Flexibility

Timbre matched to all of our THX-certified products, so you can mix and match to create an unbeatable, discreet stereo or home theater system that's just right for you.

Edge-To-Edge Grill

Covering the whole of the speaker makes painting the product both simpler and quicker. Premium Neodynium magnets make it easy to install and remove and ensure a secure and flush fit without any moving parts. The flat grill allows better harmonization with today's modern interior designs and disappear into the background, enabling sound to take center stage.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)18.3
Color Finish NameBlack
RMS Power Handling (Watts)600
Height (cm.)72.4
Width (cm)20.3
Product Weight (kg)8.30
ColorBlack
Impedance8 ohms
Number of Speakers1
Height (in.)28.5
Width (in.)8

General

System Type2-way In-wall
Frequency Response46 Hz - 20 kHz +/- 3dB
Power Handling (Cont/Peak)150W/600W
Recommended Amp Power150W
Sensitivity92 dB
Impedance8 Ohms Compatible
High Frequency Driver1” (2.5cm) Titanium diaphragm compression driver mated to 90° x 90° square Tractrix® Horn
High Frequency Crossover250 Hz & 2100 Hz
Low Frequency DriverFour 5.25” (13.3cm) high-output, fiberglass cone woofers
Enclosure MaterialMDF & Aluminum motorboard /ABS frame
Enclosure TypeInfinite baffle, front flush with wall
Hole Dimension27.25” (69.2cm) H x 6.5” (16.5cm) W
Dimensions28.5” (72.4cm) H x 8” (20.3cm) W
Mounting Depth3.75” (9.5cm)
FinishWhite paintable grill
Installation KitIK-504-W
