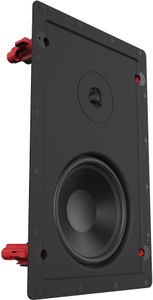

Klipsch® Custom Series CS-16W 6.5" In-Wall Speaker

Klipsch

Model #:

1064159

Model #: 1064159
720179
Klipsch
$139.00

At a Glance

Product Dimensions 14.1"h x 9"w x 3.9"d

Using the same design principles of our premium architectural and box speaker lines, the all new Klipsch® Custom series delivers true Klipsch® sound to any budget. The CS-16W features a 6.5” Polymer woofer and a 1” Polymer tweeter. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System by Swarm technology, your install time is reduced by 75%.Read More

$139.00

Get to know this product.

Product Overview

Product Overview

6.5” Polymer woofer

1” Polymer tweeter

Patent-Pending SkyHook™ Tool-Free Installation System

Bezel-Free Magnetic Grille

Flat Paintable Magnetic Grille Included

Good Sound in Any Room

Using the same design principles of our premium architectural and box speaker lines, the all new Klipsch® Custom series delivers true Klipsch sound power and performance to any budget. With a 6.5” Polymer woofer and a 1” Polymer Dome tweeter the CS-16W brings dynamic, powerful, detailed Klipsch sound to your distributed audio or home theater system.

Patent-Pending SkyHook™ Tool-Free Installation System

The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

All New, Bezel-Free Magnetic Grille

A completely redesigned power coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Useful Documents
Specification Sheet
Brochure
Specifications

General Specs

Product Weight (lbs.)7.2
Color Finish NameBlack
RMS Power Handling (Watts)160
Height (cm.)35.8
Depth (cm.)9.91
Width (cm)22.9
Product Weight (kg)3.27
ColorBlack
Impedance8 ohms
Number of Speakers1
Depth (in.)3.9
Height (in.)14.1
Width (in.)9

General

Frequency Range65Hz - 20kHz +/- 3dB
High Frequency Driver1" (2.54cm) Polymer Tweeter
Low Frequency Driver6.5” (16.51cm) Polymer Woofer
Sensitivity91 dB @ 2.83V / 1m
Power Handling40W RMS / 160W RMS
Impedance8 Ohm Compatible
Enclosure TypeABS/Infinite Baffle
FinishBlack Baffle/Frame, White Paintable Grille
Product Dimensions9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D)
Mounting Depth3.78” (9.6cm)
Included In BoxFlat Paintable Magnetic Grille
Installation KitIK-650-W II (Sold Separately)
Fire Rated EnclosureME-650-W (Sold Separately)
Built From2017
